SSG-542B-CE1CR60L
Server Supermicro SSG-542B-CE1CR60L • CSE-946STS-R1K63LPP • X14SBI-TF • 4U IPMI
Manufacturer: Supermicro
Part number: SSG-542B-CE1CR60L
Availability*: On order (estimated delivery time from 10 to 21 business days)
* Please remember that delivery times are also influenced by events beyond our and the manufacturer's control, such as random events, armed conflicts or natural disasters.
Delivery cost: $ 7.85 net ($ 9.66 gross)
(the indicative cost of delivery on Poland's territory)
The indicative delivery cost in EU - 30&euro
More info at manufacturer site
Broken link? Report us.
Log in to add a review.
Kluczowe cechy / Key features :
1. HBA by Broadcom® SAS3816 on main drive bays
2. Single Intel® Xeon® 6700/6500 series processor up to 350W TDP
3. Up to 2TB DDR5-6400MT/s registered ECC in 8 DIMM slots (1DPC)
4. 2 onboard 10GbE ports via Intel® X550 and 1 GbE port for BMC via Aspeed AST2600
5. Six total PCIe slots: 3 PCIe 5.0 x8 + 3 PCIe 5.0 x16 slots * * Slot 1 is occupied by system's default controller

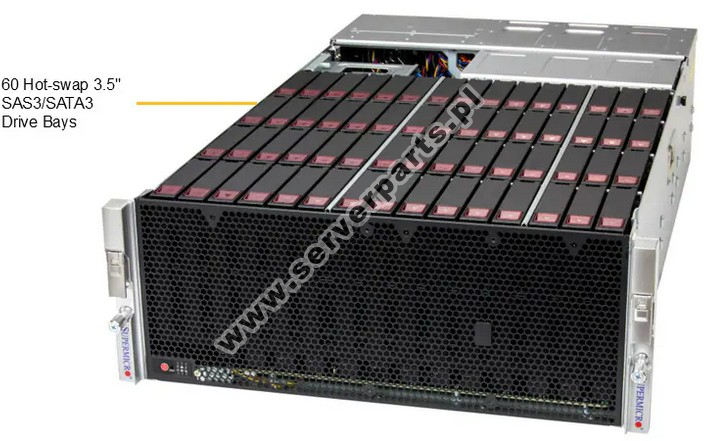

6. Up to 60 top-loading hot-swap 3.5" SAS/SATA drive bays, Optional 4 hot-plug NVMe or SATA SSDs
7. 2 Redundant 1600W Titanium Level Hot-plug power supplies
Product description
We try to be as accurate as possible, however we do not guarantee that the product descriptions on our site are current or error free.
Please verify them on the manufacturer's website by clicking this link.
| Manufacturer | Supermicro | ||||||||
|---|---|---|---|---|---|---|---|---|---|
| SKU | SSG-542B-CE1CR60L | ||||||||
| Basic informations | |||||||||
| Server content |
|
||||||||
| NIC chipset/type |
|
||||||||
| NIC # | 2 | ||||||||
| Power type | AC | ||||||||
| Chassis | |||||||||
| Product name | 946STS-R1K63LPP | ||||||||
| Basic informations | |||||||||
| U size | 4U | ||||||||
| Expansion slots # | 6 | ||||||||
| Power Supply | |||||||||
| Redundant power supply | Yes | ||||||||
| Power supply power | 1600 W | ||||||||
| Power supply type | AC | ||||||||
| Drives | |||||||||
| Hot-Swap | Yes | ||||||||
| Max. drives # | 60 | ||||||||
| 3,5" drives support | Yes | ||||||||
| 2,5" drives support | Yes | ||||||||
| E1.S EDSFF drives support | No | ||||||||
| E3.S EDSFF drives support | No | ||||||||
| SATA support | Yes | ||||||||
| SAS support | Yes | ||||||||
| CD/DVD drive installation possibility | No | ||||||||
| SAS controller required | No | ||||||||
| Motherboard | |||||||||
| Product name | X14SBI-TF | ||||||||
| Basic informations | |||||||||
| Chipset | SoC | ||||||||
| Expansion slots # | 3 | ||||||||
| Processor | |||||||||
| CPU socket | LGA4710 | ||||||||
| CPU family | Intel Xeon 6700/6500 series processors | ||||||||
| CPU builtin | No | ||||||||
| Max. CPU # | 1 | ||||||||
| System Memory | |||||||||
| Max. memory size support | 128 GB | ||||||||
| Memory sockets # | 8 | ||||||||
| Memory correction support | ER | ||||||||
| Memory size type support | DIMM | ||||||||
| Memory type support | DDR5 | ||||||||
| On-Board Devices | |||||||||
| SATA support | Yes | ||||||||
| SATA sockets # | 4 | ||||||||
| SAS support | No | ||||||||
| NIC type | 10GbE | ||||||||
| NVMe support | No | ||||||||
| IPMI | Yes | ||||||||
| VGA | Yes | ||||||||
