SBI-422B-5NE14

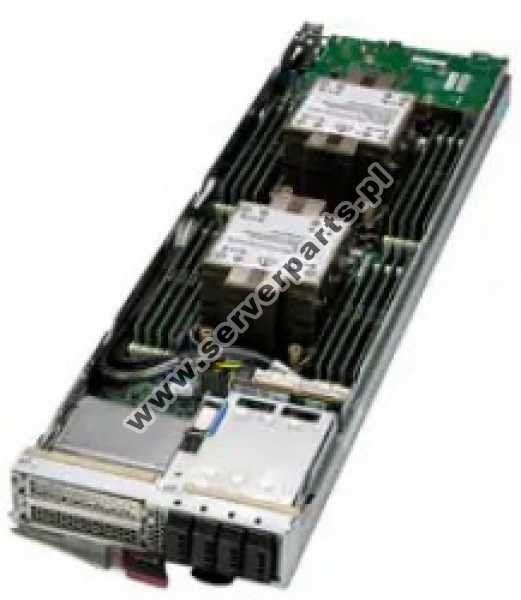

Blade Processor Supermicro SBI-422B-5NE14 • SBE-820J2 • MBD-B14DBT NVMe
Net: $ 1 405.80
Gross: $ 1 729.13
Manufacturer: Supermicro
Part number: SBI-422B-5NE14
Warehouse product ID: 24149928
Availability*: On order (estimated delivery time from 10 to 21 business days)
* Please remember that delivery times are also influenced by events beyond our and the manufacturer's control, such as random events, armed conflicts or natural disasters.
Delivery cost: $ 7.85 net ($ 9.66 gross)
(the indicative cost of delivery on Poland's territory)
The indicative delivery cost in EU - 30&euro
More info at manufacturer site
Broken link? Report us.
Log in to add a review.
Kluczowe cechy / Key features :
1. 50 servers per 42U rack
2. Dual Socket E2 (LGA-4710), Intel® Xeon® 6700/6500-series processors with P-cores or E-cores
3. Up to 16 DIMMs, 1DPC with DDR5-6400MT/s ECC RDIMM
4. Support up to 9 drives per blade
5. Dual-port 25G Ethernet (LOM), additional 200G/100G InfiniBand or dual-port 25G Ethernet via mezzanine card
6. OCP 3.0 network card support, e.g. 400G NDR InfiniBand card
Product description
We try to be as accurate as possible, however we do not guarantee that the product descriptions on our site are current or error free.
Please verify them on the manufacturer's website by clicking this link.
| Manufacturer | Supermicro | ||||||||
|---|---|---|---|---|---|---|---|---|---|
| SKU | SBI-422B-5NE14 | ||||||||
| Basic informations | |||||||||
| Server content |
|
||||||||
| Drive bays | Hot-swap - 4 E1.S drives M.2 - 1 M.2 2280 Optional: 4 M.2 NVMe via mezz card |
||||||||
| Chassis | |||||||||
| Product name | SBE-820J2 | ||||||||
| Basic informations | |||||||||
| Processor Blade | Up to 20 half-height 2-socket blade servers | ||||||||
| LED | Power LED, Fault LED | ||||||||
| Ethernet Switch | Ethernet Switch – Up to 4x modules | ||||||||
| Management Module | - Up to 2 CMMs for remote system management with software - Management Module(s) must be purchased separately |
||||||||
| Power Supplies | - Up to 8 hot-plug 2200/3000W Titanium power supplies | ||||||||
| Cooling Design | Up to 8 cooling fans in PWS modules, 3 optional cooling fan modules (PWS-DF005-2F) | ||||||||
| Dimensions (HxWxD) | 14" x 17.6" x 32" | ||||||||
| Available Models | - SBE-820J2-630 - Up to 6 hot-swappable 3000W Titanium (96% efficiency) power supplies | ||||||||
| Motherboard[1] | |||||||||
| Product name | MBD-B14DBT | ||||||||
| Basic informations | |||||||||
| Chipset | C741 | ||||||||
| Expansion slots # | 0 | ||||||||
| Processor | |||||||||
| CPU socket | LGA4710 | ||||||||
| CPU family | AMD EPYC 9005 | ||||||||
| CPU builtin | No | ||||||||
| Max. CPU # | 2 | ||||||||
| System Memory | |||||||||
| Max. memory size support | 512 GB | ||||||||
| Memory sockets # | 16 | ||||||||
| Memory correction support | ER | ||||||||
| Memory size type support | DIMM | ||||||||
| Memory type support | DDR5 | ||||||||
| On-Board Devices | |||||||||
| SATA support | No | ||||||||
| SATA sockets # | 0 | ||||||||
| SAS support | No | ||||||||
| NIC type | 1GbE | ||||||||
| NVMe support | Yes | ||||||||
| IPMI | No | ||||||||
| VGA | No | ||||||||
Product description errors? Please let us know.
